This manual is a user manual for the Hanna Total Chlorine Water Quality Detector. It introduces the use of the instrument, including the instrument's components, the instrument's operating steps, and the instrument's maintenance and maintenance.

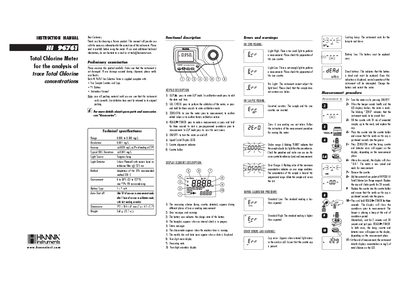

This document is the instruction manual for the Hanna Instruments HI96761 Total Chlorine Meter, designed for the analysis of trace total chlorine concentrations. The meter utilizes a tungsten lamp and a silicon photocell with a narrow band interference filter at 525 nm. It features a liquid crystal display (LCD) and a keypad for various functions including measurement, calibration, and GLP mode.
| Range | 0.000 to 0.500 mg/l |
|---|---|
| Resolution | 0.001 mg/l |
| Accuracy | 0.020 mg/l |
| Light Source | Tungsten lamp |
| Filter | 525 nm |
| Dimensions | 192 x 104 x 69 mm |
| Weight | 360 g |
The measurement range is from 0.000 to 0.500 mg/l.
One fresh battery lasts for around 750 measurements, depending on the light level.
If the display shows "Light High", check the preparation of the zero cuvette.
