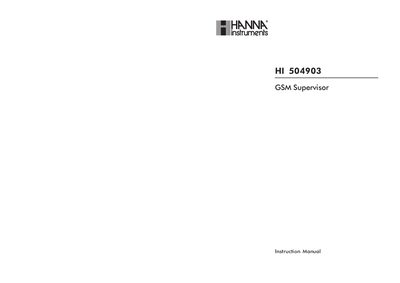

Hanna Instruments HI504903 GSM Supervisor Instruction Manual

This manual provides operating instructions for the HI 504903 GSM Supervisor product.

Brand: Hanna Instruments
Category: Industrial Supply
Document type: User Manual
Language: English
Pages: 31
File format: PDF
File size: 1.2 MB
Published: 10 July, 2012
Updated: 30 September, 2023
Model: HI 504
MD5 checksum: F3B433C0BB18E63C4BA354919983C6CA
PDF: Hanna Instruments HI504903 GSM Supervisor Instruction Manual PDF

About this manual

The Hanna Instruments HI504903 is an intelligent interface designed to connect HI142 temperature dataloggers via an RS485 port to an industrial GSM cellular phone for sending SMS messages or connecting to a computer. The device also supports a digital input for non-intelligent instruments and a digital output signal. It is available in two models: HI504903-1 for 900/1900 MHz GSM and HI504903-2 for 900/1800 MHz GSM, each with specific power supply requirements.

What's inside

General Description
Main Features
Functional Description
Mechanical Dimensions
Technical Data
Safety Information
Installation
Start-Up
Interface Configuration
Troubleshooting Guide

Specifications

RS485 connection limit	up to 31 HI142 temperature dataloggers
RS485 baud rate	1200 bps
RS232 baud rate	up to 9600
Backup battery	12V / 0.8Ah
Operating temperature	0 to 50 °C
Dimensions	240 x 200 x 98 mm

Frequently asked questions

What is the warranty period for the HI504903?

The interface is warranted for two years against defects in workmanship and materials.

Can the HI504903 be used near medical devices like pacemakers?

No, you should unplug and turn off the unit in hospitals or near medical devices like pacemakers or hearing aids.

What happens if the mains power fails?

The internal rechargeable backup battery provides power supply in case of mains power failure.
