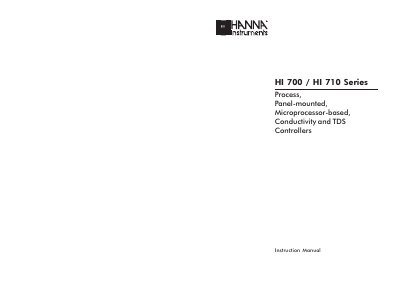

This manual describes the functions and operation of the HI 700 / HI 710 Series Process, Panel-mounted, Microprocessor-based, Conductivity and TDS Controllers. It also covers instrument setup, calibration, and maintenance.
The document serves as an instruction manual for the HI 700 and HI 710 Series Process, Panel-mounted, Microprocessor-based Conductivity and TDS Controllers. It covers various models including those with dual setpoints, ON/OFF or PID controls, analog outputs, and RS485 communication ports.
| Display Type | Large LCD with 4 1/2 digits and 3 1/2 digits |
|---|---|
| EC Ranges | 0.0 to 199.9 μS, 0 to 1999 μS, 0.00 to 19.99 mS, 0.0 to 199.9 mS |
| Accuracy | ±0.5 % F.S. (EC and TDS) |
| Temperature Compensation | Automatic or manual, -10 to 100°C with adjustable temperature coefficient from 0.00 to 10.00%/°C |
| Power Supply | 230 ±10% Vac or 115 ±10% Vac, 50/60 Hz |
| Dimensions (Panel cutout) | 140 x 140 mm |
Yes, the EC and TDS reading can have a temperature coefficient ß selectable from 0 to 10%/°C.
The instrument supports four different EC working ranges from 0 to 199.9 μS up to 0 to 199.9 mS, and four TDS ranges from 0 to 100.0 ppm to 0 to 100.0 ppt for HI 710 models.
The device requires a 230 ±10% Vac or 115 ±10% Vac, 50/60 Hz power supply.
