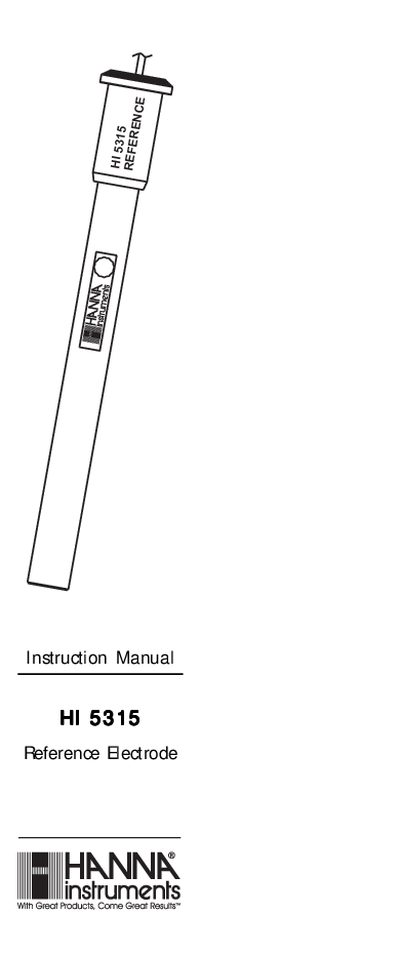

The Hanna HI 5315 reference electrode is a silver-silver chloride double junction half-cell designed for use with ion selective electrodes or pH sensors. The electrode utilizes a quick flush sleeve design. The external reference electrolyte chamber is refillable. The internal chamber is a permanently filled, gel stabilized, chloride containing electrolyte.
The Hanna Instruments HI 5315 is a silver-silver chloride double junction half-cell reference electrode designed for use with ion selective electrodes or pH sensors. It features a quick flush sleeve design with a refillable external electrolyte chamber and a permanently filled, gel-stabilized internal chamber. The electrode operates within a temperature range of 0-85°C and a pH range of 0-14.
| Operating Temperature | 0-85°C |
|---|---|
| Operating pH | 0-14 pH |
| Dimensions | 12 mm (OD) x 120 mm |
| Wetted Materials | PEI |
The recommended fill solution for a Chloride half-cell is HI 7072.
Fill solution should be added daily to maintain a good head pressure.
Drain the electrode, disassemble it, rinse the internal body with deionized water, reassemble, and refill with fresh fill solution.
