This document introduces Hanna's three removable pH and ORP electrode holders, including the dimensions, weight, and installation methods of the holders.

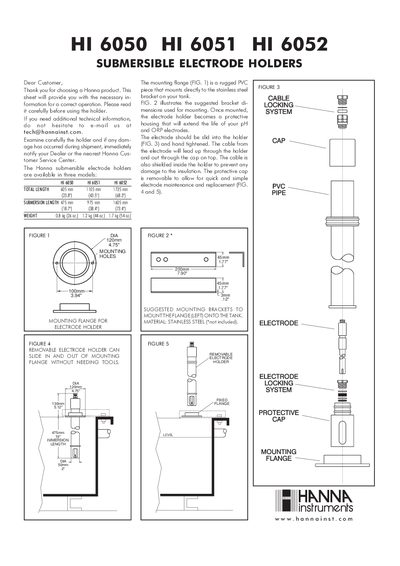

This document provides operational information for the Hanna Instruments HI 6050, HI 6051, and HI 6052 submersible electrode holders. These rugged PVC holders mount directly to a stainless steel bracket on a tank to protect pH and ORP electrodes, extending their life. The holders feature a removable cap and a lock-in system for easy electrode insertion and maintenance.
| Total Length | 605 mm (HI 6050), 1105 mm (HI 6051), 1735 mm (HI 6052) |
|---|---|
| Submersion Length | 475 mm (HI 6050), 975 mm (HI 6051), 1605 mm (HI 6052) |
| Weight | 0.8 kg (HI 6050), 1.2 kg (HI 6051), 1.7 kg (HI 6052) |
| Material | PVC |
The mounting flange mounts directly to the stainless steel bracket on your tank.
Slide the electrode into the holder and hand tighten it.
Remove the protective cap to allow for quick and simple electrode maintenance and replacement.
