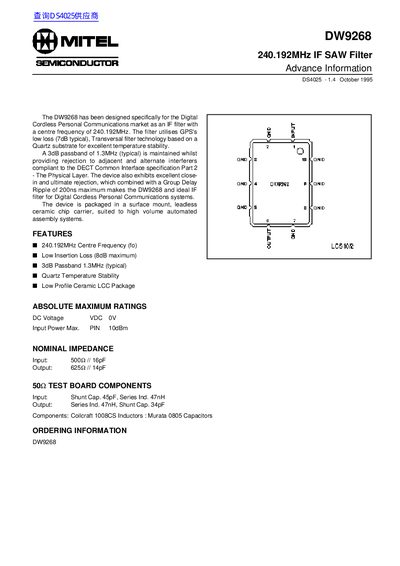

The DW9268 is an IF filter with a centre frequency of 240.192MHz, designed specifically for the Digital Cordless Personal Communications market. It uses GPS's low loss (7dB typical), Transversal filter technology based on a Quartz substrate for excellent temperature stability. A 3dB passband of 1.3MHz (typical) is maintained whilst providing rejection to adjacent and alternate interferers compliant to the DECT Common Interface specification Part 2 - The Physical Layer. The device also exhibits excellent close-in and ultimate rejection, which combined with a Group Delay Ripple of 200ns maximum makes the DW9268 an ideal IF filter for Digital Cordless Personal Communications systems. The device is packaged in a surface mount, leadless ceramic chip carrier, suited to high volume automated assembly systems.
The Mitel DW9268 is an Intermediate Frequency (IF) Surface Acoustic Wave (SAW) filter specifically designed for the Digital Cordless Personal Communications market. It operates at a center frequency of 240.192MHz and utilizes GPS's low loss, transversal filter technology based on a quartz substrate to ensure excellent temperature stability.
The device is packaged in a surface mount, leadless ceramic chip carrier (SLAM) suitable for high-volume automated assembly systems. It provides a 3dB passband of 1.3MHz typical and meets the DECT Common Interface specification Part 2 - The Physical Layer regarding rejection to adjacent and alternate interferers.
| Centre Frequency | 240.192 MHz |
|---|---|
| 3dB Bandwidth | 1.26 to 1.34 MHz |
| Insertion Loss | 7 dB typical, max 8 dB |
| Group Delay Ripple | 100 to 200 ns maximum |
| Operating Temperature Range | -20°C to +80°C |
| Package Type | 10-PAD LEADLESS CHIP CARRIER (SLAM) |
The device has a center frequency of 240.192MHz.
Yes, it provides rejection to adjacent and alternate interferers compliant to the DECT Common Interface specification Part 2.
The device exhibits a low insertion loss of 7dB typically.
