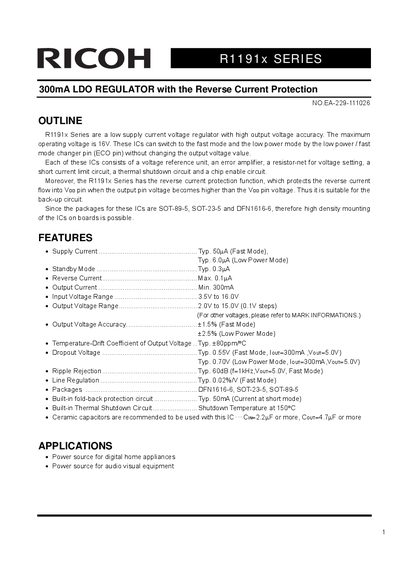

R1191x series 300mA LDO regulator with the reverse current protection. The maximum operating voltage is 16V. These ICs can switch to the fast mode and the low power mode by the low power / fast mode changer pin (ECO pin) without changing the output voltage value.
The Ricoh R1191x Series are low supply current voltage regulators featuring high output voltage accuracy. These ICs can switch between Fast Mode and Low Power Mode using the ECO pin without changing the output voltage value. The series includes built-in reverse current protection, making it suitable for back-up circuits.
Available in SOT-89-5, SOT-23-5, and DFN1616-6 packages, these regulators offer a supply current as low as 0.3nA in Low Power Mode (typical) and support input voltages from 3.5V to 16.0V.
| Supply Current (Fast Mode) | Typ. 50uA |
|---|---|
| Supply Current (Low Power Mode) | Typ. 6.0nA |
| Input Voltage Range | 3.5V to 16.0V |
| Output Voltage Range | 2.0V to 15.0V |
| Operating Temperature Range | -40 to +85 °C |
| Dropout Voltage (Fast Mode) | Typ. 0.55V |
| Shutdown Junction Temperature | 150 °C |
The typical supply current in Low Power Mode is 6.0nA.
Yes, the R1191x Series has a built-in reverse current protection function.
The ICs are available in SOT-89-5, SOT-23-5, and DFN1616-6 packages.
