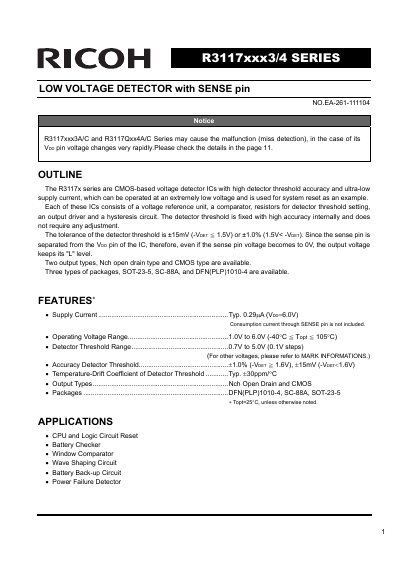

R3117xxx3/4 SERIES LOW VOLTAGE DETECTOR with SENSE pin
The Ricoh R3117x series are CMOS-based voltage detector ICs featuring high threshold accuracy and ultra-low supply current. They operate at extremely low voltages (1.0V to 6.0V) and are suitable for applications such as system reset, battery checking, and power failure detection. The devices include a voltage reference unit, comparator, resistors for threshold setting, an output driver, and a hysteresis circuit.
| Supply Current (Typ) | 0.29nA |
|---|---|
| Operating Voltage Range | 1.0V to 6.0V |
| Detector Threshold Range | 0.7V to 5.0V |
| Output Types | Nch Open Drain and CMOS |
| Packages Available | DFN(PLP)1010-4, SC-88A, SOT-23-5 |
| Operating Temperature Range | -40 to 105 °C |
The output voltage keeps its 'L' level even if the sense pin voltage becomes 0V.
The R3117x series is available in DFN(PLP)1010-4, SC-88A, and SOT-23-5 packages.
The typical supply current is 0.29nA at Voo=6.0V.
