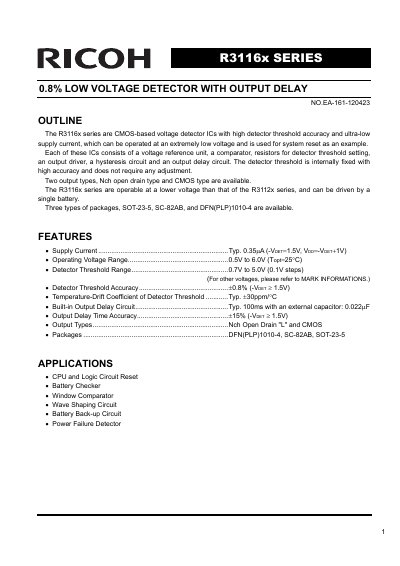

The R3116x series is a CMOS-based voltage detector IC with high detector threshold accuracy and ultra-low supply current. It can operate at an extremely low voltage and is used for system reset. Each IC in the series consists of a voltage reference unit, a comparator, resistors for detector threshold setting, an output driver, a hysteresis circuit, and an output delay circuit. The detector threshold is internally fixed with high accuracy and does not require any adjustment. Two output types, Nch open drain type and CMOS type, are available. The R3116x series can be operated at a lower voltage than the R3112x series and can be driven by a single battery. Three types of packages, SOT-23-5, SC-82AB, and DFN(PLP)1010-4, are available.
The R3116x series are CMOS-based voltage detector ICs designed for system reset and battery monitoring applications. They feature high detector threshold accuracy with a typical error of 0.8% and an ultra-low supply current of 0.35µA. The series is operable at voltages as low as 0.5V and is available in Nch open drain and CMOS output types.
| Supply Current | Typ. 0.35µA |
|---|---|
| Operating Voltage Range | 0.5V to 6.0V |
| Detector Threshold Accuracy | 0.8% |
| Temperature-Drift Coefficient | Typ. 30ppm/°C |
| Output Delay Time | Typ. 100ms |
| Packages | DFN(PLP)1010-4, SC-82AB, SOT-23-5 |
The series offers two output types: Nch open drain type and CMOS type.
The R3116x series is operable at a minimum voltage of 0.5V.
The typical supply current is 0.35µA when VDET is 1.5V and VDD is VDET+1V.
