RN5VD series low voltage detector has high detector threshold accuracy and ultra-low supply current, which can be operated at an extremely low voltage and is used for system reset as an example

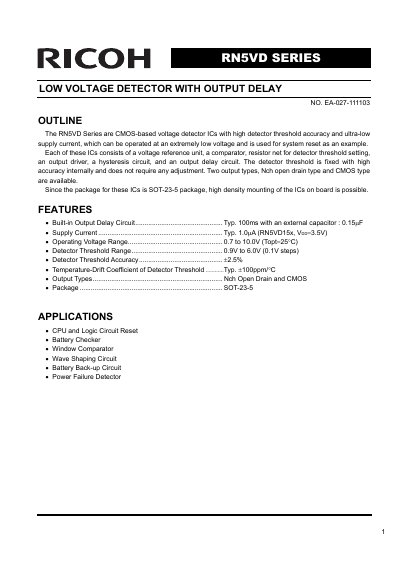

The Ricoh RN5VD Series are CMOS-based voltage detector ICs designed for system reset and battery monitoring applications. They feature high detector threshold accuracy, ultra-low supply current, and an internal output delay circuit. The series is available in Nch open drain and CMOS output types within a compact SOT-23-5 package.
| Supply Current | Typ. 1.0uA |
|---|---|
| Operating Voltage Range | 0.7 to 10.0V |
| Detector Threshold Range | 0.9V to 6.0V |
| Detector Threshold Accuracy | Typ. ±2.5% |
| Temperature-Drift Coefficient | Typ. +100ppm/°C |
| Package Type | SOT-23-5 |
| Operating Temperature Range | -40 to +85 °C |
The RN5VD series offers two output types: Nch open drain type and CMOS type.
The typical supply current is 1.0uA at VDD=3.5V.
The maximum operating voltage is 10V.
