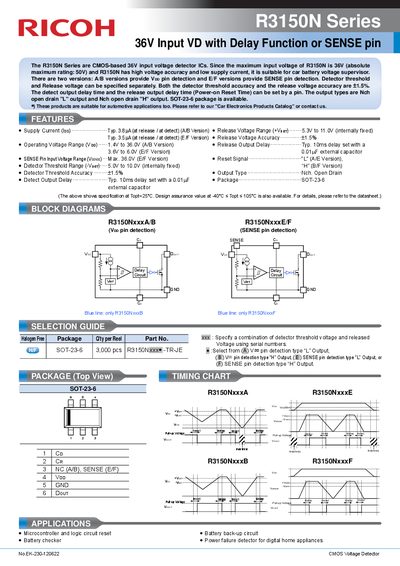

The Ricoh R3150N Series are CMOS-based 36V input voltage detector ICs designed for car battery voltage supervision and automotive applications. The series offers high voltage accuracy and low supply current, with two versions: A/B versions provide Vov pin detection, while E/F versions provide SENSE pin detection. Both versions allow for separate specification of detector threshold and release voltage with an accuracy of +1.5%.
| Maximum Input Voltage | 36V |
|---|---|
| Absolute Maximum Rating | 50V |
| Supply Current (Iss) | Typ. 3.84uA |
| Release Voltage Accuracy | +/-1.5% |
| Operating Voltage Range (A/B Version) | 1.4V to 36.0V |
| Package Type | SOT-23-6 |
The maximum input voltage is 36V, with an absolute maximum rating of 50V.
A/B versions provide Vov pin detection, while E/F versions provide SENSE pin detection.
