r1150h series are cmos-based voltage regulator (vr) ics equipped with a voltage detector (vdet)

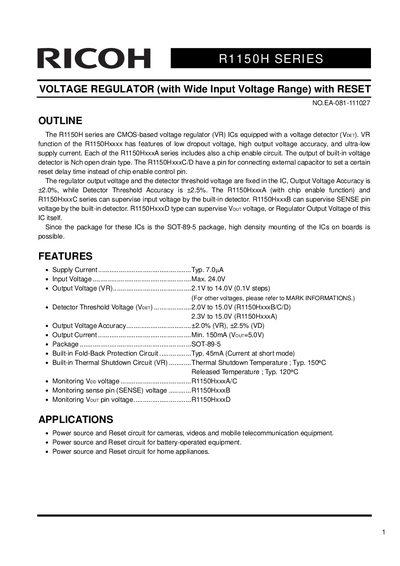

The document describes the R1150H series, which are CMOS-based voltage regulator (VR) ICs equipped with a voltage detector. These devices feature low dropout voltage, high output voltage accuracy, and ultra-low supply current. The series includes various versions with chip enable circuits or external capacitor connections for setting reset delay times.
| Output Voltage Range | 2.1V to 14.0V (0.1V steps) |
|---|---|
| Package Type | SOT-89-5 |
| Output Current (Min) | 150mA at Vout=5.0V |
| Operating Temperature Range | -40 to 85 °C |
| Output Voltage Accuracy | +/-2.0% |
The minimum output current is 150 mA when the output voltage is 5.0V.
The maximum operating temperature is 85 °C.
The maximum input voltage rating is 26.0 V.
