This manual describes the features and characteristics of the BL 983322-0 and BL 983322-1 models of EC indicators and controllers

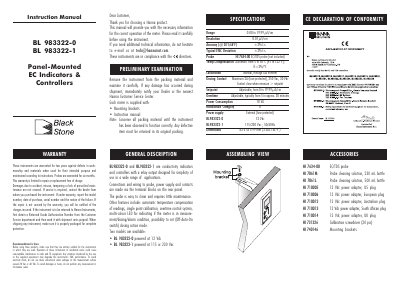

The document serves as the instruction manual for the Hanna Instruments BL 983322-0 and BL 983322-1 Panel-Mounted EC Indicators & Controllers. These devices are designed for simplicity of use in a wide range of applications, featuring a relay output for dosing control and automatic temperature compensation. The manual covers general descriptions, specifications, and preliminary examination of the units.
| Range | 0.00 to 19.99 µS/cm |
|---|---|
| Resolution | 0.01 µS/cm |
| Accuracy | ±2% f.s. (@ 20°C/68°F) |
| EMC Deviation | ±2% f.s. |
| Temperature Compensation | Automatic from 5 to 50°C |
| Calibration | Manual, through CAL trimmer |
| Dosing Contact Max | 2A (fuse protected), 250 Vac, 30 Vdc |
| Setpoint Range | 0 to 19.99 µS/cm |
| Overtime Range | 5 to approx. 30 minutes |
| Power Consumption | 10 VA |
| Dimensions | 83 x 53 x 99 mm |
The instruments are warranted for two years against defects in workmanship and materials when used for their intended purpose.
Probes are warranted for six months.
To disable the overtime feature, simply remove the jumper on the rear panel.
