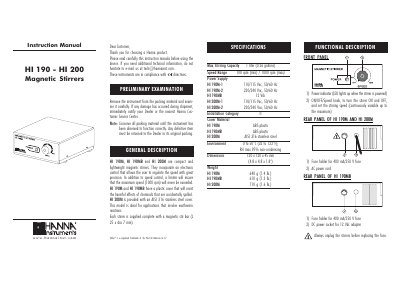

This manual introduces the features and characteristics of the Hanna HI 190M/HI 190MB/HI 200M series magnetic stirrers, including the appearance, functions, and operating methods of the products.
This manual provides instructions for the preliminary examination, installation, and operation of the HI 190M, HI 190MB, and HI 200M magnetic stirrers. It details the functional description of the control knobs and panels, as well as safety recommendations and warranty information.
| Max Stirring Capacity | 1 liter (0.26 gallons) |
|---|---|
| Speed Range | 100 rpm (min) / 1000 rpm (max) |
| Power Supply HI 190M-1 | 110/115 Vac, 50/60 Hz |
| Power Supply HI 190M-2 | 220/240 Vac, 50/60 Hz |
| Power Supply HI 190MB | 12 Vdc |
| Power Supply HI 200M-1 | 110/115 Vac, 50/60 Hz |
| Power Supply HI 200M-2 | 220/240 Vac, 50/60 Hz |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing |
| Dimensions | 120 x 120 x 45 mm (4.8 x 4.8 x 1.8") |
| Weight HI 190M | 640 g (1.4 lb.) |
| Weight HI 190MB | 610 g (1.3 lb.) |
| Weight HI 200M | 710 g (1.6 lb.) |
The maximum speed is 1000 rpm, and a limiter ensures this limit is never exceeded.
All Hanna Instruments products are warranted for two years against defects in workmanship and materials.
The HI 200M is provided with an AISI 316 stainless steel cover.
