This manual introduces the features and characteristics of BL 983324-0 and BL 983324-1, including the working range, resolution, accuracy, EMC deviation, TDS conversion factor, probe, temperature compensation, calibration, dosing contact, setpoint, overtime, power consumption, installation category, power supply, dimensions, etc.

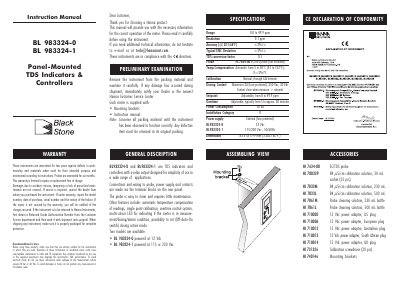

This manual covers the BL 983324-0 and BL 983324-1, which are panel-mounted TDS indicators and controllers designed for simplicity in a wide range of applications. The devices feature a relay output, automatic temperature compensation, single-point calibration, and a multi-colour LED indicator for measurement, dosing, and alarm conditions. Two models are available: the BL 983324-0 powered at 12 Vdc and the BL 983324-1 powered at 115 or 230 Vac.
| Range | 0.0 to 49.9 ppm |
|---|---|
| Resolution | 0.1 ppm |
| Accuracy | +M%ts at 20°C/68°F |
| TDS conversion factor | 0.5 |
| Temp. Compensation | Automatic from 5 to 50°C |
| Calibration | Manual, through CAL trimmer |
| Dosing Contact | Maximum 2A, 250 Vac, 30 Vdc |
| Power Consumption | 10 VA |
| Dimensions | 83 x 53 x 99 mm |
The instruments are warranted for two years against defects in workmanship and materials.
To disable the overtime feature, simply remove the jumper on the rear panel.
The manual recommends using HI 7033 calibration solution (84 µS/cm).
