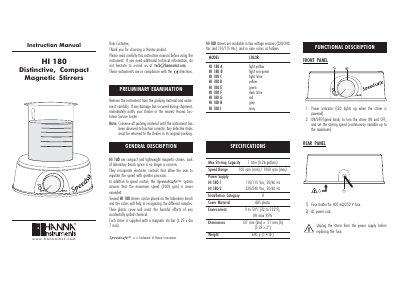

This document is the instruction manual for the HI 180 magnetic stirrer. It mainly introduces the features and usage methods of the product, such as color scheme, speed control, etc.
The HI 180 Distinctive Compact Magnetic Stirrers are compact and lightweight devices designed for laboratory environments. They feature electronic controls for precise speed regulation and a SpeedsafeTM system that ensures the maximum speed of 1000 rpm is never exceeded. The units are available in two voltage versions (110/115 Vac and 220/240 Vac) and come in nine different colors to help distinguish samples on the bench. The plastic cover is resistant to accidental chemical spills, and each unit is supplied with a magnetic stir bar measuring 25 mm in length and 7 mm in diameter.
| Max Stirring Capacity | 1 Liter (0.26 gallons) |
|---|---|
| Speed Range | 100 rpm (min) / 1000 rpm (max) |
| Power Supply | 110/115 Vac, 50/60 Hz or 220/240 Vac, 50/60 Hz |
| Environment Temperature | 0 to 50ºC (32 to 122ºF) |
| Relative Humidity | RH max 95% |
| Dimensions | 137 mm (dia) x 51 mm (h) |
| Weight | 640 g (1.4 lb.) |
| Stir Bar Size | L 25 x dia 7 mm |
The maximum speed is 1000 rpm, which is never exceeded by the SpeedsafeTM system.
The instruments are available in two voltage versions: 110/115 Vac and 220/240 Vac.
All Hanna Instruments stirrers are warranted for two years against defects in workmanship and materials.
