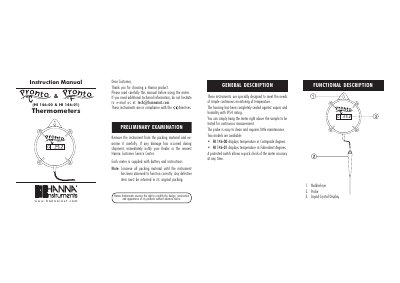

This document is the user manual for Hanna's thermometer.
This document is the instruction manual for the Hanna Instruments HI 146-00 and HI 146-01 thermometers. These instruments are designed for simple continuous monitoring of temperature with a sealed housing and an easy-to-clean stainless steel probe.
The manual provides operational instructions, including how to dip the probe, avoid damaging the cable, and interpreting display readings. It also details procedures for performing a calibration check using an internal switch and replacing the AA alkaline battery when the display fades.
| Range (HI 146-00) | -50.0 to 150.0°C |
|---|---|
| Resolution (HI 146-00) | 0.1°C |
| Accuracy (HI 146-00) | +0.3°C (-20 to 90°C), +0.5°C (outside) |
| Range (HI 146-01) | -58.0 to 302°F |
| Resolution (HI 146-01) | 0.1°F (-58.0 to 199.9°F), 1°F(200 to 302°F) |
| Probe | Stainless steel probe with 2 m cable |
| Battery Type | 1 x 1.5V AA alkaline |
| Dimensions | 85 x 110 x 43 mm (3.4.x 43x 1.7) |
An immersion level of 4 cm (1 4") is recommended.
Remove the back cover and move the internal switch to the 'TEST' position; the display should show 0.0-+ 0.3°C (32.0°F+0.5°F).
Variations in readings or a fading display can indicate a weak battery.
