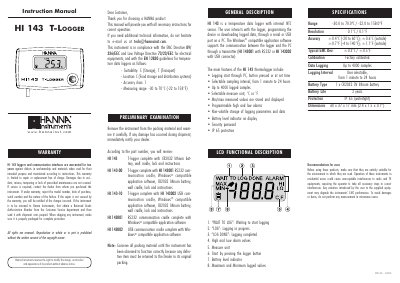

HI 143 T-LOGGER instruction manual
The HI 143 is a portable temperature data logger featuring an internal NTC sensor. It allows users to log temperature data with selectable intervals from 1 minute to 24 hours and stores up to 4000 samples. The device supports communication via RS232 or USB interfaces for programming and downloading data using compatible PC software.
| Measuring Range | -30.0 to 70.0°C / -22.0 to 158.0°F |
|---|---|
| Resolution | 0.1°C/ 0.1°F |
| Accuracy | +/- 0.4°C (-20 to 60°C) |
| Data Logging Capacity | Up to 4000 samples |
| Logging Interval | 1 minute to 24 hours |
| Battery Type | CR2032 lithium battery |
| Protection Rating | IP 65 |
The instrument is warranted for two years against defects in workmanship and materials.
If the starting type is set to 'button', press and hold the logger button for about 3 seconds.
The logger enters a reset status, displays 'PC', and calculates the remaining battery life.
