BFT53 is a NPN type transistor produced by Semelab. Its maximum working voltage is 35V and the maximum current is 1A. The package form is TO18 (TO206AA).

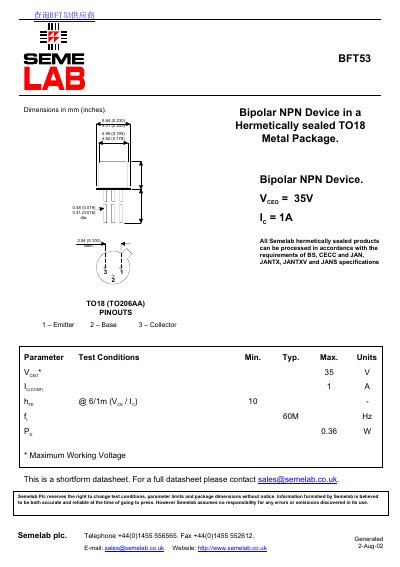

The document describes the Semelab BFT53 as a Bipolar NPN Device housed in a 35110 (2.9) Hermetically sealed TO18 Metal Package. The pinout configuration is defined with Pin 1 as Emitter, Pin 2 as Base, and Pin 3 as Collector.
Key electrical specifications include a maximum working voltage ($V_{CEO}$) of 35 V and a continuous current rating ($I_C$) of 1 A. The device operates at frequencies up to 60 MHz with a power dissipation ($P_D$) of 0.36 W.
| Continuous Current ($I_C$) | 1 A |
|---|---|
| Frequency Response | 60 MHz |
| Power Dissipation ($P_D$) | 0.36 W |
The device is a Bipolar NPN transistor housed in a hermetically sealed TO18 metal package.
The maximum working voltage is 35 V.
The maximum collector current is 1 A.
