BFT60 is a NPN transistor produced by Semelab. Its maximum working voltage is 35V, maximum current is 1A, and package type is TO39.

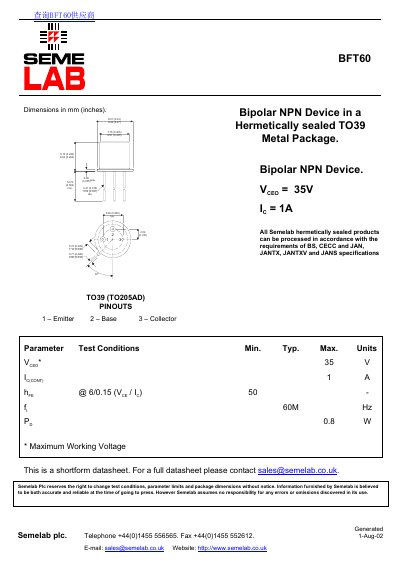

The document is a shortform datasheet for the Semelab BFT60, which is a Bipolar NPN Device housed in a hermetically sealed TO39 (TO205AD) Metal Package. It provides physical dimensions and pinout definitions for the component.
Key electrical specifications listed include a maximum working voltage of 35V, a current rating of 1A, and an operating frequency range up to 60MHz with a power dissipation of 0.8W. The text notes that this is a shortform version and directs users to contact sales for the full datasheet.
| Package Type | TO39 (TO205AD) Metal Package |
|---|---|
| Device Type | Bipolar NPN Device |
| Maximum Working Voltage (Vceo) | 35 V |
| Current Rating (Ic) | 1 A |
