BFT36A is a PNP silicon transistor produced by Semelab. It features fast switching and high pulse power. It is suitable for power switching circuits and motor control applications.

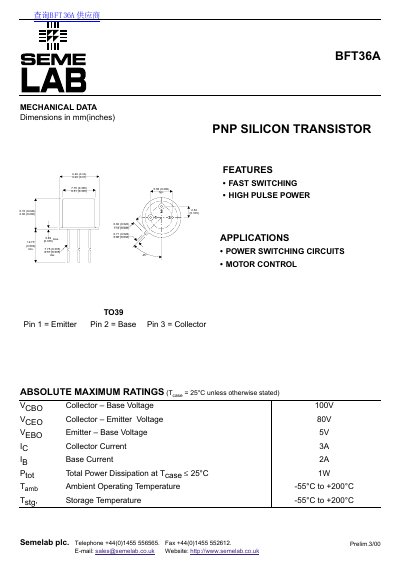

This document provides the technical specifications for the Semelab BFT36A, a PNP silicon transistor designed for fast switching and high pulse power applications. It includes mechanical data such as dimensions and pinout configuration for the TO39 package.
The datasheet lists absolute maximum ratings including collector-emitter voltage, collector current, and operating temperature ranges. It also presents electrical characteristics such as transition frequency, cutoff currents, and saturation voltages under specific test conditions.
| Package Type | TO39 |
|---|---|
| Transistor Type | PNP Silicon Transistor |
| Collector-Base Voltage | 100V |
| Collector-Emitter Voltage | 80V |
| Collector Current | 3A |
| Base Current | 2A |
| Total Power Dissipation | 1W |
| Ambient Operating Temperature | -55°C to +200°C |
| Transition Frequency | 50 MHz |
The BFT36A is suitable for power switching circuits and motor control.
The maximum collector current is 3A.
The ambient operating temperature ranges from -55°C to +200°C.
