Semelab BFT32 Bipolar NPN Device Datasheet

BFT32 is a bipolar NPN device produced by Semelab with a maximum working voltage of 60V and a maximum current of 5A.

Brand: Semelab
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 10 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 49889AD6D18553A9C2C737B654AAE27B
PDF: Semelab BFT32 Bipolar NPN Device Datasheet PDF

About this manual

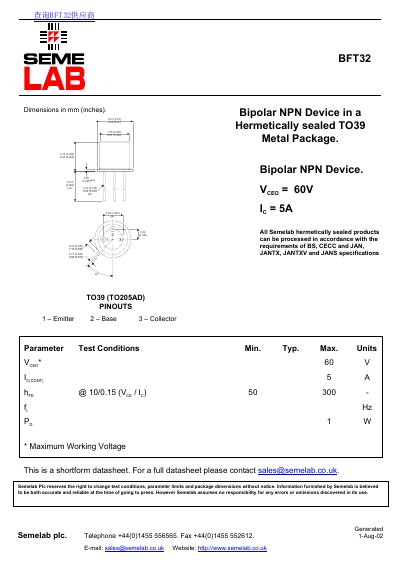

The document is a shortform datasheet for the Semelab BFT32, a Bipolar NPN device housed in a hermetically sealed TO39 metal package. The text provides dimensional drawings and pinout information for the component.

What's inside

Dimensions
Pinouts
Electrical Characteristics
Package Information
Compliance

Specifications

Package Type	TO39
Device Type	Bipolar NPN

Frequently asked questions

What type of device is the BFT32?

The BFT32 is a Bipolar NPN Device in a hermetically sealed TO39 metal package.

What are the maximum working voltage and current ratings?

The device has a maximum working voltage of 60 V and a current rating of 5 A.

What is the pinout configuration for the BFT32?

Pin 1 is the Emitter, Pin 2 is the Base, and Pin 3 is the Collector.
