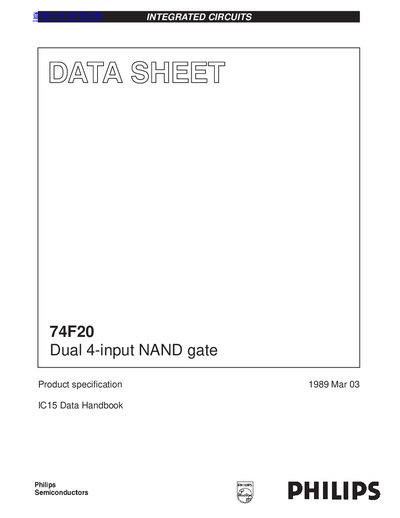

Philips 74F20 Dual 4-input NAND Gate Datasheet

74F20 is a dual 4-input NAND gate from Philips Semiconductors with a typical propagation delay of 3.5ns and a typical supply current of 2.2mA.

Brand: Philips
Category: INTEGRATED CIRCUITS
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 71 KB
Published: 06 July, 2012
Updated: 30 September, 2023
MD5 checksum: 918E8453650F63B520CCFDC825A378DE
PDF: Philips 74F20 Dual 4-input NAND Gate Datasheet PDF

About this manual

This document is a product specification datasheet for the Philips 74F20, a Dual 4-input NAND gate integrated circuit. It provides detailed electrical characteristics, including DC and AC parameters, absolute maximum ratings, and recommended operating conditions for both commercial range devices.

What's inside

Product specification
Ordering information
Pin configuration
Logic diagram
Absolute maximum ratings
DC electrical characteristics
AC electrical characteristics
Package dimensions
Data sheet status
Disclaimers

Specifications

Operating temperature range	0°C to +70°C
High-level input voltage	2.0V minimum
Low-level input voltage	0.8V maximum

Frequently asked questions

What is the function of the 74F20?

The 74F20 is a Dual 4-input NAND gate.

What is the operating free-air temperature range for the 74F20?

The device operates within a free-air temperature range of 0 to +70 °C.
