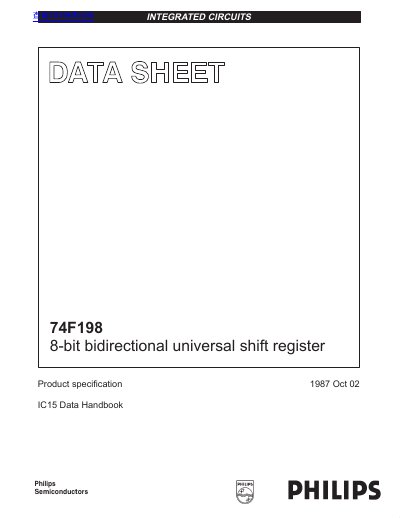

This document describes the product specification of 74F198 8-bit bidirectional universal shift register, including buffered clock and control inputs, shift right, shift left, and parallel load capability.
The Philips 74F198 is an 8-bit bidirectional universal shift register designed to incorporate features such as buffered clock and control inputs, shift right and shift left capability, parallel load, and an asynchronous master reset. It features four distinct modes of operation: parallel load, shift right, shift left, and inhibit clock.
| Maximum clock frequency | 95 MHz |
|---|---|
| Supply voltage | 4.5V to 5.5V |
| Operating temperature range | 0°C to +70°C |
| Number of bits | 8-bit |
The device operates within a free-air temperature range of 0°C to +70°C.
The supply voltage must be between 4.5 V and 5.5 V for recommended operation.
