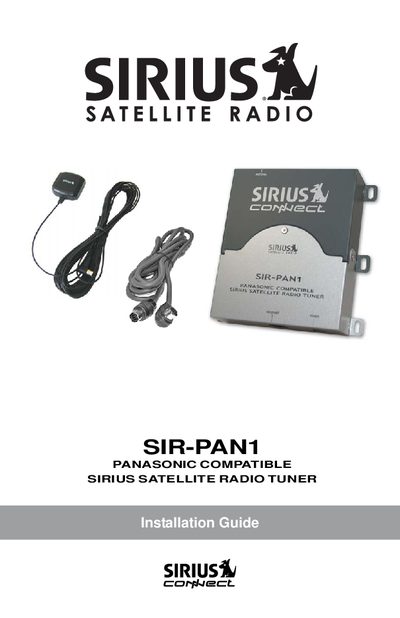

SIRIUS SIR-PAN1 Satellite Radio Tuner Installation Guide

About this manual

The SIR-PAN1 is a satellite radio tuner designed specifically to work with 2006 models of Panasonic headunits designated as 'SAT RADIO READY'. The device provides access to over 125 channels of commercial-free music, sports, news, and entertainment via the SIRIUS network.

Installation involves mounting the unit in a location free from moisture, extreme heat, and moving parts. It requires connecting an antenna with a magnetic base to the vehicle roof or trunk lid, routing the cable through the interior trim, and plugging it into the tuner's SMB connector. The power harness must be connected to the vehicle's ACC (ignition), Battery (+), and Ground (-) terminals.

What's inside

• Package Contents
• Warnings and Cautions
• Mounting the Tuner
• Installing the Antenna
• Optimum Antenna Mounting Locations
• Wiring and Cable Connections

Frequently asked questions

Which vehicles is this tuner compatible with?

This tuner is designed to work with 2006 models of Panasonic headunits that are designated as 'SAT RADIO READY'.

What are the required power connections?

The power harness must be connected to ACC (Ignition Switched), Battery (+), and Ground (-).
