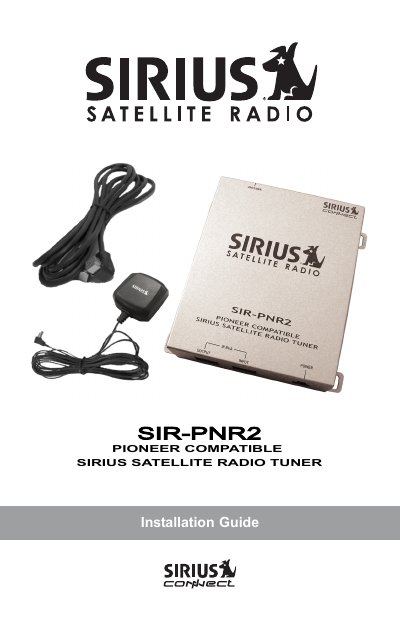

The SIR-PNR2 is a Pioneer compatible SIRIUS satellite radio tuner. It provides over 120 channels of digital entertainment, including music and other entertainment programs, with the feature of wide satellite signal coverage.
The document provides step-by-step instructions for installing the SIR-PNR2 satellite radio tuner in a vehicle compatible with Pioneer headunits. It details the contents of the package, including the magnetic micro antenna and power harness, and outlines safety warnings regarding driving and electrical connections.
The guide explains how to mount the unit securely on the vehicle chassis or dashboard, ensuring proper ventilation and avoiding interference with moving parts. It also provides specific instructions for installing the magnetic antenna on the vehicle roof or trunk lid, routing the cable through existing channels, and connecting the IP-Bus and power wires correctly.
| Power Requirements | 11-16 Volts DC |
|---|---|
| Fuse Type | 1-AMP (Glass) |
| Chassis Size | 126.75mm x 125.75mm x 34.75mm |
| Audio Output | 1V (Fixed) |
It works with all Pioneer headunits designated to be 'SAT RADIO READY' for any Satellite Radio provider.
The optimum location is on the roof of the vehicle, placed on a metal surface at least 12" x 12" and at least 6" from a window.
If the battery (+) and ground (-) wires are crossed, the fuse installed in the power harness fuse box will blow.
