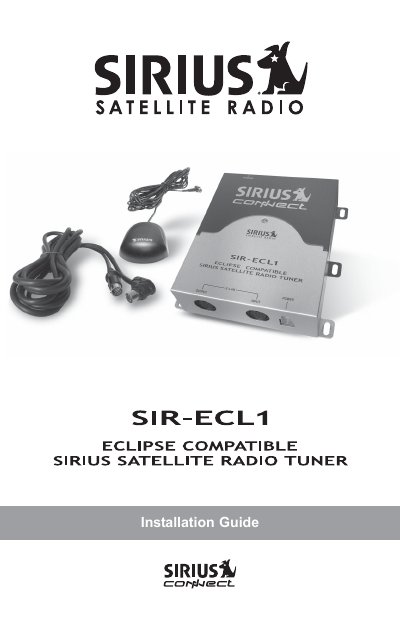

SIRIUS SIR-ECL1 Eclipse Compatible Satellite Radio Tuner Installation Guide

This is the SIR-ECL1 installation guide

Brand: SIRIUS
Category: Car Accessories
Document type: Installation Guide
Language: English
Pages: 16
File format: PDF
File size: 1.2 MB
Published: 06 July, 2012
Updated: 01 October, 2023
MD5 checksum: AB0DFF6CC3DB21F5D9F69ECD5A7782E6
PDF: SIRIUS SIR-ECL1 Eclipse Compatible Satellite Radio Tuner Installation Guide PDF

About this manual

This guide provides step-by-step instructions for installing the SIR-ECL1 tuner, which is designed to work with 2005 and up ECLIPSE E-LAN headunits designated as 'SIRIUS READY.' The document details the contents of the package, including the tuner, magnetic micro antenna, and power harness.

What's inside

Package Contents
Warnings and Cautions
Mounting the Tuner
Installing the Antenna
Optimum Antenna Mounting Locations
Wiring and Cable Connections
System Connection Examples
Activating Your SIRIUS Subscription
Basic Operation
Specifications

Specifications

Compatible Headunits	2005 and up ECLIPSE E-LAN headunits designated 'SIRIUS READY'
Antenna Cable Length	6-1/2 inches
Antenna Mounting Surface	Metal surface at least 12 x 12 inches

Frequently asked questions

What is the SIR-ECL1 tuner compatible with?

It is designed to work with 2005 and up ECLIPSE E-LAN headunits that are designated SIRIUS READY.

Where is the optimum location to mount the antenna?

The optimum location is on the roof of the vehicle, avoiding obstructions like roof racks.
