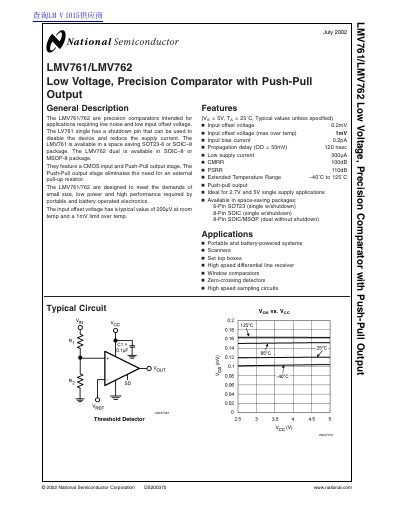

LMV761/LMV762 is a low-voltage, high-precision comparator with push-pull output
The LMV761 and LMV762 are precision comparators designed for applications requiring low noise and low input offset voltage. The LMV761 is a single comparator featuring a shutdown pin to reduce supply current, available in SOT23-6 or SOIC-8 packages. The LMV762 is a dual comparator available in SOIC-8 or MSOP-8 packages. Both devices feature a CMOS input and a push-pull output stage that eliminates the need for an external pull-up resistor.
| Input offset voltage (typical) | 0.2 mV |
|---|---|
| Input bias current | 0.2 pA |
| Propagation delay | 120 nsec |
| Low supply current (LMV761) | 300 pA |
| CMRR | 100 dB |
| PSRR | 110 dB |
| Operating temperature range | -40°C to 125°C |
| Supply voltage range | 2.7V to 5.0V |
The typical input offset voltage is 0.2 mV at room temperature.
Yes, the LMV761 single comparator has a shutdown pin that can be used to disable the device and reduce supply current.
They feature a push-pull output stage which eliminates the need for an external pull-up resistor.
