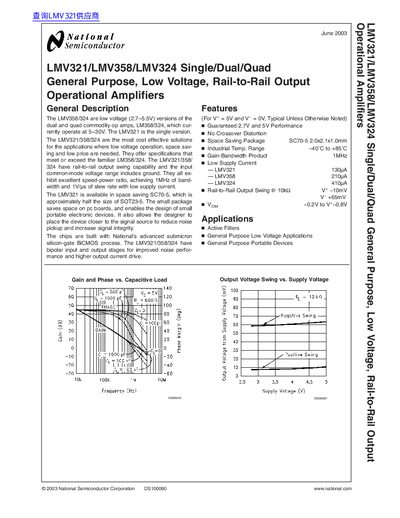

National Semiconductor LMV321/LMV358/LMV324 Operational Amplifiers Datasheet

This document introduces the features and characteristics of the LMV321/LMV358/LMV324 series products, including low voltage, space saving and low price.

Brand: National Semiconductor
Document type: Datasheet
Language: English
Pages: 27
File format: PDF
File size: 1.1 MB
Published: 06 July, 2012
Updated: 13 October, 2026
Models: LMV321, LMV358, LMV324
MD5 checksum: EAB53BFEEE2C48C8B1ECAE473CE74CDD
PDF: National Semiconductor LMV321/LMV358/LMV324 Operational Amplifiers Datasheet PDF

About this manual

This document provides technical specifications and performance characteristics for the LMV321 (single), LMV358 (dual), and LMV324 (quad) general-purpose operational amplifiers. These devices are low-voltage versions of the standard LM358/324 series, designed to operate with a supply voltage range of 2.7V to 5.5V.

What's inside

General Description
Features
Applications
Absolute Maximum Ratings
DC Electrical Characteristics (2.7V)
AC Electrical Characteristics (5V)
Typical Performance Characteristics

Specifications

Supply Voltage Range	2.7V to 5.5V
Gain-Bandwidth Product	1 MHz
Slew Rate	1 V/us
Input Offset Voltage Typ	7 mV
Supply Current LMV321	130 pA
Operating Temperature Range	-40°C to +85°C

Frequently asked questions

What is the operating temperature range for these operational amplifiers?

The devices are rated for an industrial temperature range of -40°C to +85°C.

What is the typical supply current for the LMV321 model?

The typical supply current for the LMV321 is 130pA.

Download PDF (1.1 MB)
