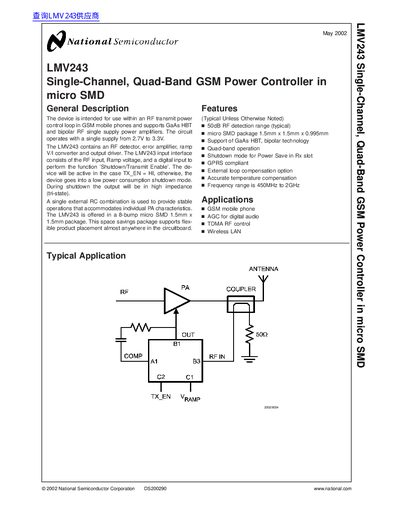

The LMV243 is a single-channel, quad-band GSM power controller designed for use within an RF transmit power control loop in GSM mobile phones. It supports GaAs HBT and bipolar RF single supply power amplifiers. The circuit operates with a single supply voltage ranging from 2.7V to 3.3V. The LMV243 includes an RF detector, error amplifier, ramp V/I converter, and output driver. Its input interface consists of an RF input, ramp voltage, and a digital input for the 'Shutdown/Transmit Enable' function. The device is active when TX_EN = HI and goes into a low power consumption shutdown mode otherwise. During shutdown, the output is in high impedance (tri-state). The LMV243 utilizes a single external RC combination for stable operation, accommodating individual power amplifier characteristics. It is offered in an 8-bump micro SMD package measuring 1.5mm x 1.5mm x 0.995mm, allowing for flexible product placement on the circuit board.
The LMV243 is a single-channel, quad-band GSM power controller designed for use within RF transmit power control loops in GSM mobile phones. It supports GaAs HBT and bipolar RF single supply power amplifiers and operates with a single supply voltage ranging from 2.7V to 3.3V. The device integrates an RF detector, error amplifier, ramp V/A converter, and output driver to manage RF output power levels.
| Supply Voltage | 2.7V to 3.3V |
|---|---|
| Operating Temperature Range | -40°C to 85°C |
| Storage Temperature Range | -65°C to 150°C |
| RF Frequency Range | 450MHz to 2GHz |
| Package Type | 8-bump micro SMD |
| Package Dimensions | 1.5mm x 1.5mm x 0.995mm |
| RF Detection Range | 50dB (typical) |
| Supply Current (Active) | 8.7 mA (Typ) |
| Supply Current (Shutdown) | 30 uA (Typ) |
| Gain-Bandwidth Product | 7.6 MHz |
The device operates with a single supply from 2.7V to 3.3V.
Yes, the device is GPRS compliant.
The shutdown current is typically 30 uA when TX_EN is 0.8V.
It is offered in an 8-bump micro SMD package measuring 1.5mm x 1.5mm.
