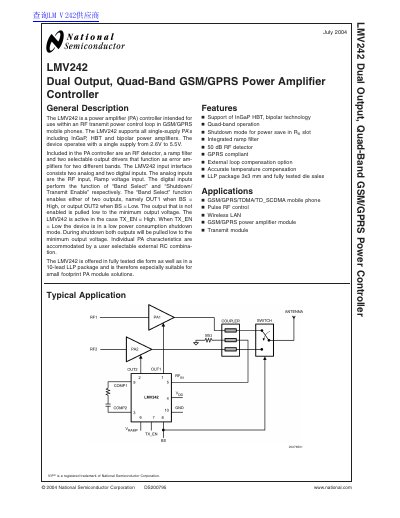

The LMV242 is a power amplifier (PA) controller intended for use within an RF transmit power control loop in GSM/GPRS mobile phones.
The LMV242 is a power amplifier (PA) controller designed for use within an RF transmit power control loop in GSM/GPRS mobile phones. It supports all single-supply PAs including InGaP, HBT, and bipolar technologies. The device operates with a single supply ranging from 2.6V to 5.5V.
| Supply Voltage Range | 2.6V to 5.5V |
|---|---|
| RF Frequency Range | 450 MHz to 2 GHz |
| Shutdown Current (Typical) | 30 µA @ 2.6V |
| Gain-Bandwidth Product | 5.1 MHz @ 2.6V |
The device operates with a single supply from 2.6V to 5.5V.
It is intended for use within an RF transmit power control loop in GSM/GPRS mobile phones.
The device enters a low power consumption shutdown mode where both outputs are pulled low.
