LMV111 is a low voltage operational amplifier launched by National Semiconductor Corporation. It has the characteristics of low power consumption, high performance, small size, and is widely used in portable electronic devices, active filters, mobile communications and other fields.

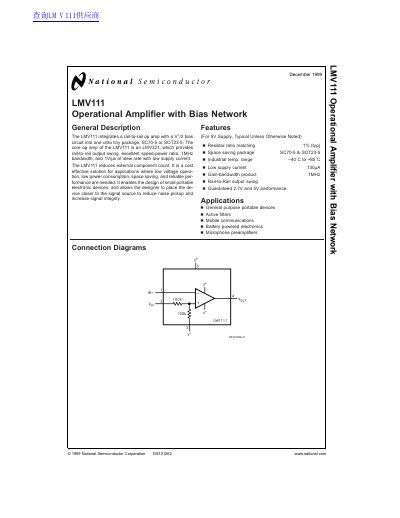

The National Semiconductor LMV111 is an ultra-tiny operational amplifier that integrates a rail-to-rail output op amp and a V+/2 bias circuit into a single SC70-5 or SOT23-5 package. The core device is the LMV321, providing excellent speed-power ratios with low supply current.
| Supply Voltage Range | 2.7V to 5.0V |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Gain-Bandwidth Product | 1 MHz |
| Slew Rate | 1 V/us |
| Resistor Ratio Matching | 1 % (typ) |
The typical supply current at 5V is 130 pA.
The device is available in SC70-5 and SOT23-5 packages.
