The LMX2216 is a monolithic integrated low noise amplifier (LNA) and mixer suitable as a first stage amplifier and down-converter for RF receiver applications

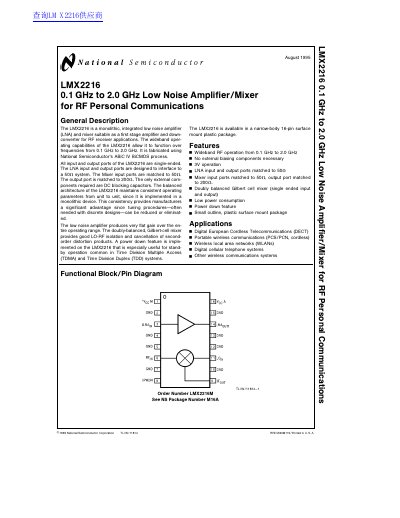

The National Semiconductor LMX2216 is a monolithic integrated device combining a low noise amplifier (LNA) and a doubly balanced Gilbert-cell mixer in a single package. It is designed as a first-stage amplifier and down-converter for RF receiver applications, featuring wideband operation from 0.1 GHz to 2.0 GHz.
| Operating Frequency Range | 0.1 GHz to 2.0 GHz |
|---|---|
| Supply Voltage | 3V operation |
| LNA Gain (Typical) | 10 dB |
| Mixer Conversion Gain (Typical) | 6.0 dB |
| LNA Noise Figure (Typical) | 6.0 dB |
| Mixer SSB NF (Typical) | 18 dB |
The recommended operating temperature range is -40°C to +85°C.
No, the device requires no external biasing components.
