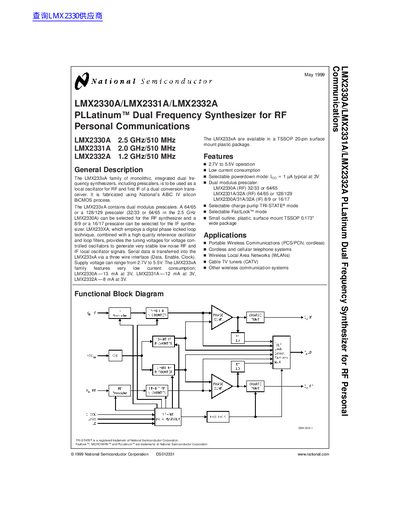

LMX2330A/LMX2331A/LMX2332A PLLatinum™ Dual Frequency Synthesizer for RF Personal Communications
The LMX233xA family consists of monolithic, integrated dual frequency synthesizers fabricated using National's ABiC IV silicon BiCMOS process. These devices are intended to serve as local oscillators for the RF and first IF stages of dual conversion transceivers. The family includes three models: the LMX2330A, LMX2331A, and LMX2332A, each offering different operating frequency ranges for RF applications while maintaining a common 510 MHz IF range.
| Supply Voltage | 2.7V to 5.5V |
|---|---|
| Power Consumption (LMX2330A RF+IF) | 13 mA typical at 3V |
| Power Consumption (LMX2331A RF+IF) | 12 mA typical at 3V |
| Power Consumption (LMX2332A RF+IF) | 8 mA typical at 3V |
| RF Operating Frequency (LMX2330A) | 0.5 to 2.5 GHz |
| RF Operating Frequency (LMX2331A) | 0.2 to 2.0 GHz |
| RF Operating Frequency (LMX2332A) | 0.1 to 1.2 GHz |
| IF Operating Frequency | 45 to 510 MHz |
| Oscillator Frequency | 5 to 40 MHz |
| Phase Detector Frequency | 10 MHz |
| RF Input Sensitivity (Vcc=3.0V) | -15 to +4 dBm |
The LMX2330A typically consumes 13 mA at 3V.
The IF synthesizer operates between 45 MHz and 510 MHz.
The device operates with a supply voltage ranging from 2.7V to 5.5V.
