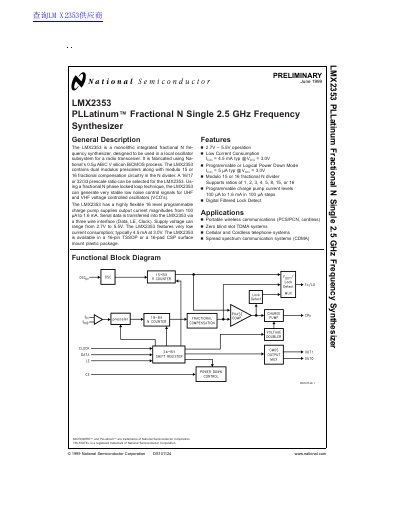

The LMX2353 is a fractional N frequency synthesizer with 2.5 GHz frequency range, 2.7V - 5.5V operating voltage and 4.5 mA typical current consumption. It supports 16 levels programmable charge pump current.
The LMX2353 is designed to generate stable low noise control signals for UHF and VHF voltage controlled oscillators (VCOs) using a fractional N phase locked loop technique. It features dual modulus prescalers with selectable 16/17 or 32/33 ratios, supporting operation from 0.5 GHz to 2.5 GHz.
| Package Types | 16-pin TSSOP or 16-pad CSP |
|---|
The LMX2353 supports a 16/17 or 32/33 prescale ratio selection.
The device operates from 500 MHz to 2.5 GHz.
The supply voltage must range from 2.7V to 5.5V.
