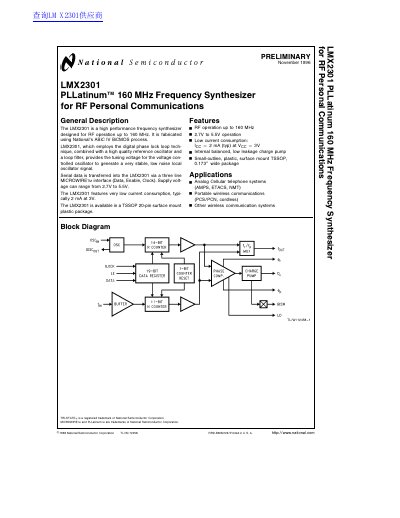

The LMX2301 is a high performance frequency synthesizer designed for RF operation up to 160 MHz. It is fabricated using National's ABiC IV BiCMOS process. The LMX2301 employs the digital phase lock loop technique, combined with a high quality reference oscillator and a loop filter, to provide the tuning voltage for the voltage controlled oscillator and generate a very stable, low noise local oscillator signal. Serial data is transferred into the LMX2301 via a three line MICROWIRE interface (Data, Enable, Clock). The supply voltage can range from 2.7V to 5.5V. The LMX2301 features very low current consumption, typically 2 mA at 3V. It is available in a TSSOP 20-pin surface mount plastic package.
The LMX2301 is a high performance frequency synthesizer designed for RF operation up to 160 MHz. It employs digital phase lock loop technology combined with a high quality reference oscillator and loop filter to generate a stable, low noise local oscillator signal. The device operates on supply voltages ranging from 2.7V to 5.5V.
| Operating Temperature Range | -40°C to +85°C |
|---|
The RF buffer input supports an operating frequency up to 160 MHz.
The device operates with a power supply voltage ranging from 2.7V to 5.5V.
