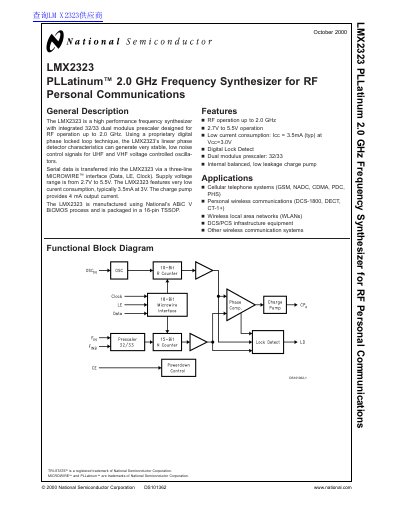

LMX2323 is a 2.0GHz frequency synthesizer that uses a digital phase locked loop to generate stable, low-noise control signals
The LMX2323 is a high performance frequency synthesizer with an integrated 32/33 dual modulus prescaler designed for RF operation up to 2.0 GHz. It utilizes proprietary digital phase locked loop technology to generate stable, low noise control signals suitable for UHF and VHF voltage controlled oscillators.
The device features very low current consumption, typically 3.5mA at 3V, and includes an internal balanced, low leakage charge pump providing 4 mA output current. It is manufactured using National's ABiC V BiCMOS process and packaged in a 16-pin TSSOP.
| RF Operation Frequency | up to 2.0 GHz |
|---|---|
| Supply Voltage Range | 2.7V to 5.5V |
| Typical Current Consumption | 3.5 mA at 3V |
| Charge Pump Output Current | 4 mA |
| Package Type | 16-pin TSSOP |
The device operates with a supply voltage ranging from 2.7V to 5.5V.
It features an integrated 32/33 dual modulus prescaler.
The LMX2323 has very low current consumption, typically 3.5mA when Vcc is 3.0V.
