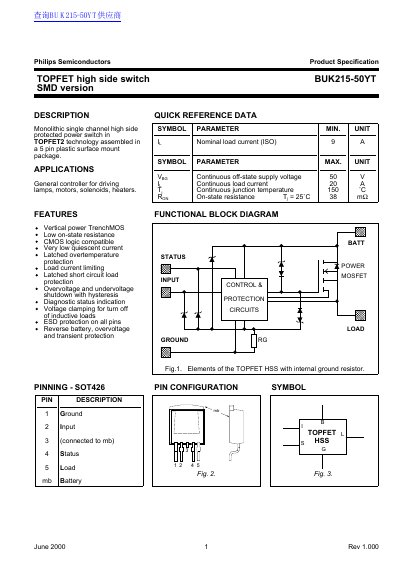

BUK215-50YT is a single channel high side protected power switch from Philips Semiconductors, assembled in a 5 pin plastic surface mount package.
The Philips BUK215-50YT is a monolithic single channel high side switch assembled in a 5 pin plastic surface mount package (SOT426). It utilizes TOPFET2 technology to provide a vertical power trench MOS structure with low on-state resistance and CMOS logic compatibility. The device is designed for use as a general controller for driving lamps, motors, solenoids, and heaters.
| Nominal load current (ISO) | 9 A |
|---|---|
| Continuous off-state supply voltage | 50 V |
| Continuous load current | 20 A |
| Continuous junction temperature | 150 ˚C |
| On-state resistance (Tj = 25˚C) | 38 m Ω |
| Package type | 5 pin plastic surface mount package |
It is a general controller for driving lamps, motors, solenoids, and heaters.
The maximum continuous junction temperature is 150 ˚C.
The on-state resistance is 38 m Ω at a junction temperature of 25˚C.
