Samson Q3 Microphone Product Leaflet

Q3 is a high output, low impedance dynamic mic for instrument and drum miking. It features a rare earth neodymium element for high output and superior sound quality. It is also equipped with a special multi-axis shock-mount chassis to further reduce noise.

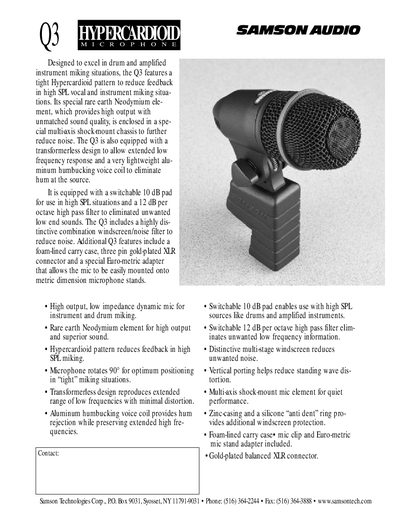

Samson Q3 Microphone Product Leaflet - cover page
Brand
Samson
Document type
Product Leaflet
Language
English
Pages
2
File format
PDF
File size
100 KB
Published
05 July, 2012
Updated
30 September, 2023
MD5 checksum
D3BC20562D682BC6364AA4ECA92D107B

About this manual

The Samson Q3 is a dynamic microphone with a hypercardioid polar pattern, designed specifically for drum and amplified instrument miking situations. It features a rare earth Neodymium element for high output and superior sound quality, enclosed in a multi-axis shock-mount chassis to reduce handling noise. The microphone includes a transformerless design for extended low-frequency response and an aluminum humbucking voice coil to eliminate hum at the source.

What's inside

  • Features
  • Specifications
  • Frequency Response
  • Construction
  • Connector
  • Dimensions
  • Warranty

Specifications

TypeDynamic
Polar PatternHypercardioid
Frequency Response50 Hz - 15 kHz
Max. SPL137 dB
Output Impedance600 Ohms
Connector3-pin gold-plated balanced XLR male
Weight15.1 oz (431 g)
WarrantyThree-year

Frequently asked questions

What is the frequency response of the Samson Q3?

The microphone has a frequency response from 50 Hz to 15 kHz.

What is the maximum SPL of the Samson Q3?

The maximum SPL is 137 dB.

Does the Samson Q3 include a warranty?

Yes, the microphone carries a three-year warranty.
