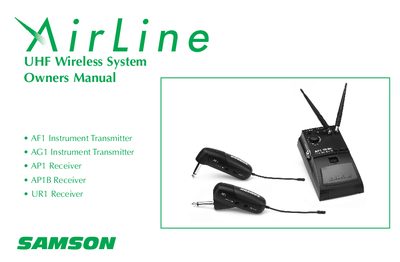

This document is the owner's manual for the UHF Wireless System by Samson Technologies Corp. The manual provides information on the features and usage of the AF1 / AG1 transmitters, AP1 / AP1B receivers, and UR1 receiver.
The Samson AirLine UHF wireless system is designed to replace cables between electric guitars or basses and amplifiers or mixers. The system features miniaturized circuitry and operates in the 801-805 and 863-865 MHz frequency ranges. It includes small, lightweight transmitters (AF1 and AG1) and compact receivers (AP1, AP1B, and UR1) to provide freedom of movement on stage.
| Frequency Range | 801 - 805, 863 - 865 MHz |
|---|---|
| Battery Life | 14 hours typical |
| Output Impedance | 5 - 10 K Ohm |
| DC Input Voltage | 12VDC |
The AP1 receiver uses a standard 9-volt alkaline battery, with the Duracell MN 1604 type recommended.
Place a fresh AAA battery in the transmitter and turn it on momentarily; the LED will flash once and then go off if the battery is sufficiently strong.
The TX/Peak LED lights green when receiving valid RF signal and red when the output signal is at the onset of clipping.
