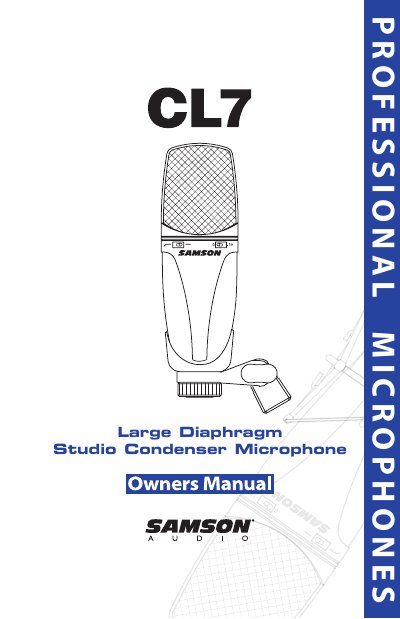

This document introduces the features and characteristics of the Samson CL7 Studio Condenser Microphone, including a large 1.1-inch ultra-thin diaphragm, extended frequency, and fast transient response.
The Samson CL7 is a large diaphragm studio condenser microphone featuring a 1.1-inch capsule with a gold sputtered diaphragm. It offers switchable features including a -10dB PAD for high SPL sources and a Hi-pass filter to eliminate low-frequency rumble or wind noise. The manual details how to power the unit using phantom power, adjust signal levels, and utilize the included swivel stand mount.
| Frequency Response | 20 ~ 20000 HZ |
|---|---|
| Polar Pattern | Cardioid |
| Element Type | Condenser |
| Diaphragm Thickness | 3 microns |
| Sensitivity | -40 dB/Pa |
| Max SPL | 147 dB |
| Equivalent Noise Level | 17dB |
| Impedance | 200 ohms |
| Power Supply Voltage | phantom power 48V +/-3V |
The CL7 requires a phantom power supply, which is standard on most quality mixers and hard disk recorders.
When set to -10dB, the PAD lowers the microphone's input sensitivity by 10dB for handling loud sound sources.
