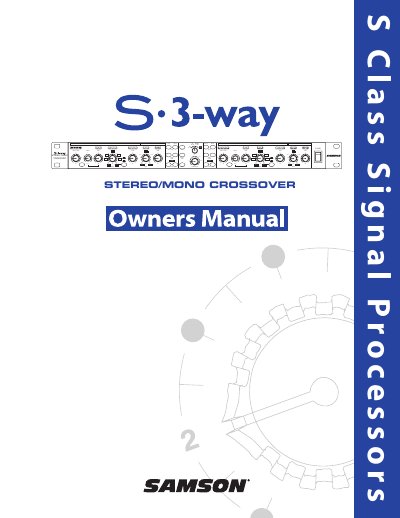

This document describes the features and characteristics of a product called S Class Signal Processors, including input gain, delay, high-pass filter, etc.
The Samson S*3-way is a one-space, dual channel electronic crossover designed to manage frequency control for various speaker systems. It supports Stereo 2-Way, Stereo 3-Way, 4-Way Mono, and 4-Way Mono Low operations, making it suitable for PA systems, live sound venues, and recording studio monitors. Key features include precision Linkwitz-Riley filters, adjustable low frequency delay, a built-in peak limiter with independent threshold control, and individual phase and mute switches per frequency band.
| Filter Type | Linkwitz-Riley, 24 dB/Octave |
|---|---|
| High Pass Filter | Butterworth 25 Hz, 12 dB/Octave |
| Delay Range | 0 to 2ms |
| Input Gain Range | -12dB to +12dB |
| Warranty | Three-year extended warranty |
The unit supports Stereo 2-Way, Stereo 3-Way, 4-Way Mono, and 4-Way Mono Low speaker systems.
The delay line can be adjusted from 0 to 2ms for time aligning speaker stacks.
Activating this switch engages a constant directivity horn EQ curve to smooth the high frequency response above 3.5 kHz.
