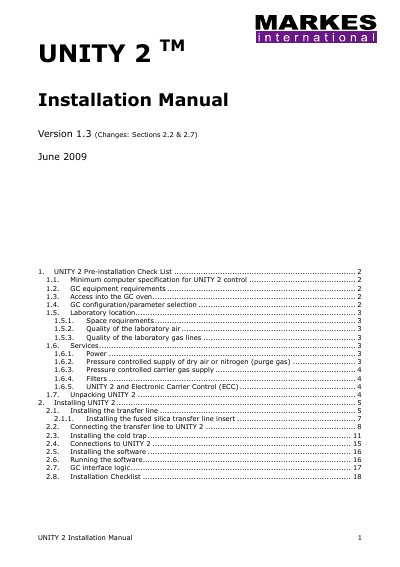

This manual describes how to install the UNITY 2, including pre-installation checks and installation steps.
This manual provides instructions for installing the Markes UNITY 2 thermal desorption system. It details pre-installation requirements, including minimum computer specifications and laboratory environment needs such as air quality and gas line quality. The guide covers unpacking the unit and preparing the Gas Chromatograph (GC) for connection.
| Minimum CPU | 400MHz Pentium |
|---|---|
| Minimum RAM | 64 MB |
| Minimum Free Disk Space | 20 MB |
| Operating System | Windows 95, 98, ME, 2000, NT4, XP (32-bit) and Vista (32-bit) |
| Minimum Resolution | 800x600 |
| Power Consumption | 650 W |
| Transfer Line Length | 1 m |
| Transfer Line ID | 0.25 mm |
The minimum requirements are a 400MHz Pentium CPU, 64 MB RAM, and 20 MB free disk space.
Compatible operating systems include Windows 95, 98, ME, 2000, NT4, XP (32-bit), and Vista (32-bit).
The maximum power consumption of the UNITY 2 unit is 650 W.
5.0 grade (99.999%) or higher purity helium or nitrogen gas is recommended.
