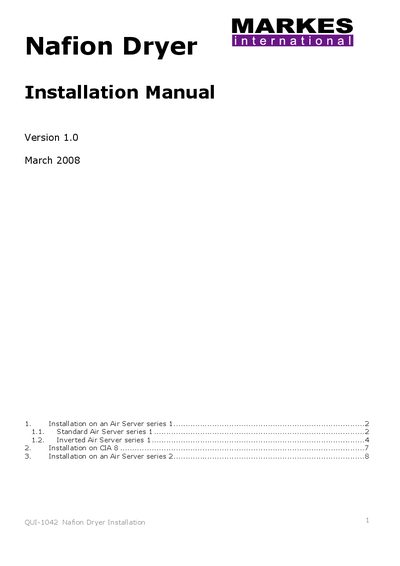

MARKES Nafion Dryer QUI-1042 Installation Manual

This document introduces the installation method of QUI-1042 Nafion Dryer, including the installation method of standard Air Server and Inverted Air Server.

Brand: MARKES
Category: Other
Document type: Installation Guide
Language: English
Pages: 8
File format: PDF
File size: 753 KB
Published: 05 July, 2012
Updated: 30 September, 2023
MD5 checksum: BD773DBCD2764BD530674EA4F78D37DB
PDF: MARKES Nafion Dryer QUI-1042 Installation Manual PDF

About this manual

This manual provides installation instructions for the MARKES Nafion Dryer (model QUI-1042) on various Air Server series units and the CIA 8 system. It covers procedures for mounting the unit, connecting tubing, and integrating the solenoid connector depending on the specific rear panel configuration of the host device.

What's inside

Installation on an Air Server series 1
Installation on CIA 8
Installation on an Air Server series 2
Mounting the Nafion Dryer Assembly
Connecting Tubing and Fittings
Supply Pressure and Flow Control

Specifications

Supply Pressure Limit	below 50 psi

Frequently asked questions

What is the maximum supply pressure for the Nafion Dryer?

The supply pressure should be kept below 50 psi.

How is the flow controlled after installation?

The flow is controlled by the needle valve once activated in the software.
