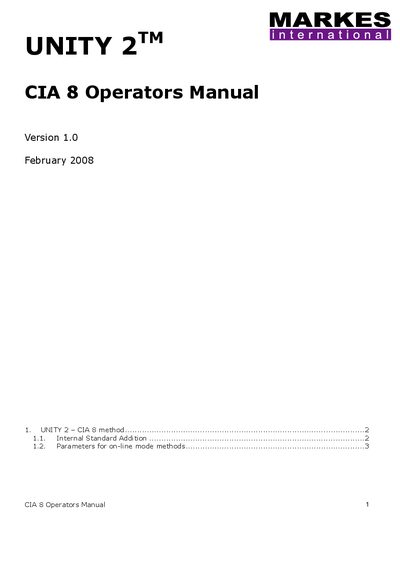

MARKES UNITY 2 CIA 8 Operators Manual

About this manual

The MARKES UNITY 2 CIA 8 system operates in an on-line mode once the software is downloaded to the Air Server. It is designed for use with whole-air samples or for continuous on-line monitoring of air and gas streams. The interface allows users to configure parameters such as flow rate, pre-purge time, trap purge time, and split flow.

What's inside

• On Line Sampling
• Internal Standard Addition
• Parameters for on-line mode methods
• Gas Sequence
• Ports
• Configuration Reporting
• Miscellaneous
• CIA Purge Time

Frequently asked questions

What operating modes are available after downloading the software to the Air Server?

The only mode available is On Line Air, which allows for whole-air samples or continuous on-line monitoring of air or gas streams.

How does enabling the 'Add Standard' option affect the sampling process?

During the Prepurge Time, a 1 mL sample loop is swept with internal standard at a flow rate determined by the IS flow regulation needle valve.

What happens to the internal standard loop if the CIA Purge Time parameter is left at zero?

The loop will be purged for the duration of the sampling time.
