The PCA5007 is a Pager baseband controller with various functions, including CPU timing, memory organization, I/O facilities, clock correction, serial interface communication, etc.

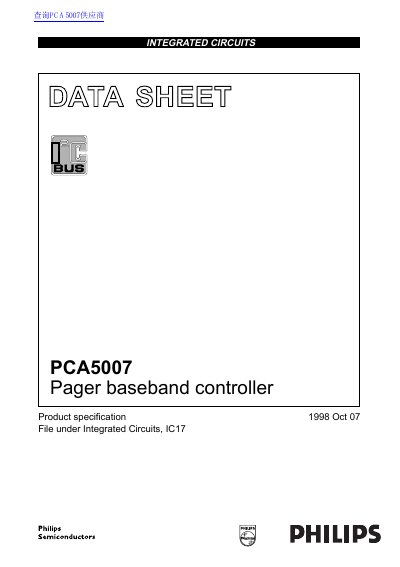

The Philips PCA5007 is a pager baseband controller manufactured in advanced CMOS/OTP technology. It functions as an 8-bit microcontroller specifically suited for pagers, featuring an on-chip DC/DC converter optimized for small paging systems and a real-time clock (RTC). The device integrates a full static asynchronous 80C51 CPU with 20 kbytes of One-Time Programmable (OTP) memory and 1-kbyte of RAM.
| Operating temperature range | -10 to +55 °C |
|---|---|
| Supply voltage range (with DC/DC converter) | 0.9 to 1.6 V |
| OTP memory size | 20 kbytes |
| RAM size | 1-kbyte |
| General purpose I/O lines | 27 |
| Interrupt sources | 15 different interrupt sources |
| Timer/event counters | 2 standard timer/event counters TO and T1 |
| Package type | 48-pin LQFP package |
The supply voltage range is 0.9 to 1.6 V.
It contains 20 kbytes of One-Time Programmable (OTP) memory and 1-kbyte of RAM.
It supports POCSAG, APOC phase 1, and advanced high speed paging protocols.
