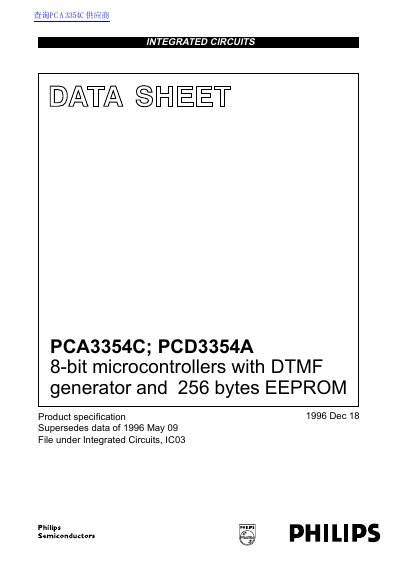

This document describes the features and characteristics of the PCA3354C and PCD3354A 8-bit microcontrollers with DTMF generator and 256 bytes EEPROM.
This document is a product specification datasheet for the Philips PCA3354C and PCD3354A integrated circuits. These are 8-bit microcontrollers designed specifically for telephony applications, featuring an on-chip generator for dual tone multifrequency (DTMF), modem, and musical tones.
The devices include 8 kbytes of ROM, 256 bytes of RAM, and 256 bytes of Electrically Erasable Programmable Read Only Memory (EEPROM) for data storage without battery backup. They operate with a supply voltage range of 1.8 to 6 V and support CPU clock frequencies up to 16 MHz.
| CPU Architecture | 8-bit CPU, ROM, RAM, EEPROM and I/O |
|---|---|
| Package Type | 44-lead quad flat package |
| ROM Size | 8 kbytes |
| RAM Size | 256 bytes |
| EEPROM Size | 256 bytes |
| I/O Port Lines | 36 quasi-bidirectional I/O port lines |
| Operating Temperature (PCA3354C) | 0 to +50 °C |
| CPU Clock Frequency | 1 to 16 MHz |
Yes, the 256 bytes of EEPROM permit data storage without battery backup.
The operating ambient temperature for the PCA3354C is 0 to 50 °C.
The operating ambient temperature for the PCD3354A is -25 to +70 °C.
The supply voltage for the PCA3354C is fixed at 2.0 V.
