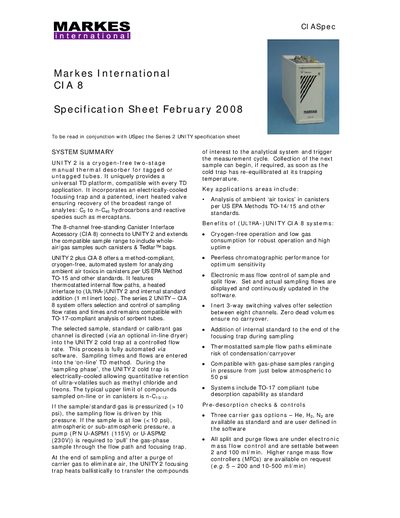

This file is the CIA 8 specification sheet released by Markes International, which introduces the functions and features of CIA 8, including the ability to be used for tagged or untagged tubes, provides a universal TD platform, compatible with all TD applications, uses an electrically cooled focusing trap and a patented inert heated valve to ensure the recovery of the broadest range of analytes, including C2 to n-C40 hydrocarbons and reactive species such as mercaptans.
The Markes International CIA 8 is an 8-channel free-standing Canister Interface Accessory designed to connect to the UNITY 2 thermal desorber. It extends the system's compatibility to include whole-air and gas samples, such as canisters and Tedlar bags, enabling method-compliant analysis of ambient air toxics per US EPA Method TO-15 and other standards. The system features thermostatted internal flow paths, a heated interface to the UNITY 2 unit, and the capability for internal standard addition via an inert loop.
| Height | 28 cm (11.2 in) |
|---|---|
| Width | 12 cm (4.8 in) |
| Depth | 50 cm (2 in) |
| Weight | 8 Kg (17 Ib) |
| Ambient operating temperature | 0°C to 40°C |
| Ambient operating humidity | 30 to 90% RH non-condensing |
| Power input voltage range | 90 to 253V, 47/63 Hz |
| Sample flow range | 2 to 100 ml/min |
| Trap purge flow range | 2 to 100 ml/min |
| Sample time range | 0 to 99.9 minutes |
The system is compatible with US EPA Method TO-15 and other standards for analyzing ambient air toxics in canisters.
No, the UNITY 2 plus CIA 8 system offers cryogen-free operation.
Users can select from five common sample gas matrix types: Air, helium, carbon dioxide, nitrogen, and hydrogen.
