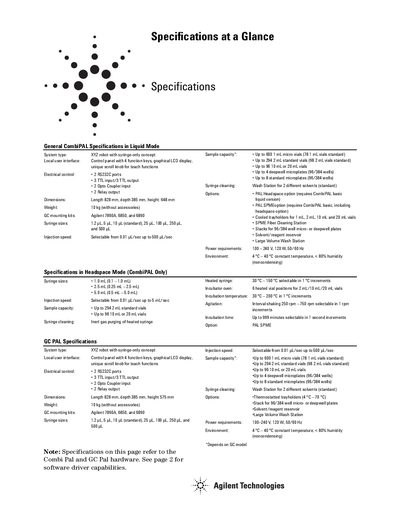

This file is the specification sheet of CombiPAL liquid autoinjector
This document provides a quick reference guide for the Agilent CombiPAL autosampler system operating in Liquid Mode. It details general specifications such as physical dimensions (828 mm length), weight (10 kg without accessories), and compatibility with Agilent 7890A, 6850, and 6890 gas chromatographs.
| Dimensions (Liquid Mode) | Length 828 mm, depth 385 mm, height: 648 mm |
|---|---|
| Weight (Liquid Mode) | 10 kg (without accessories) |
| Compatible GC Systems | Agilent 7890A, 6850, and 6890 |
| Syringe Sizes (Liquid Mode) | 1.2uL, 5 pL, 10 pL (standard), 25 pL, 100 pL, 250 pL, and 500 pL |
| Injection Speed | Selectable from 0.01 pL/sec up to 500 pL/sec |
| Power Requirements (Liquid Mode) | 100 — 240 V, 120 W, 50/60 Hz |
| Operating Environment (Liquid Mode) | 4°C — 40 °C constant temperature, < 80% humidity |
| Dimensions (GC PAL Mode) | Length 828 mm, depth 385 mm, height 575 mm |
| Incubation Temperature (GC PAL) | 30 °C — 200 °C in 1 °C increments |
| Agitation Speed (GC PAL) | Interval shaking 250 rpm —750 rpm selectable |
The system is compatible with Agilent 7890A, 6850, and 6890 gas chromatographs.
The unit operates in a constant temperature environment between 4°C and 40 °C.
Agilent CTC Pal ChemStation drivers or EZChrom Elite drivers are required.
