This document describes the specifications and features of the Agilent 3100 OFFGEL Fractionator. The instrument is lightweight and compact, with wide ranging capability for voltage and frequency. It has high resolution and multiple modes to choose from. The instrument has programmable timetable and individual current control for each sample. It also has high loading capacity and multiple types of consumables.

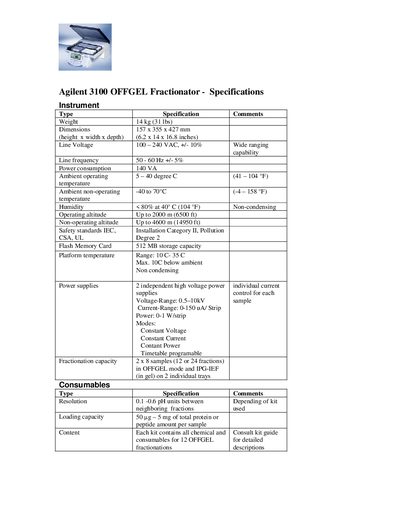

This document provides technical specifications for the Agilent 3100 OFFGEL Fractionator. Key physical attributes include a weight of 14 kg and dimensions of 157 x 355 x 427 mm. The instrument operates on line voltages ranging from 100 to 240 VAC at frequencies between 50 and 60 Hz.
| Weight | 14 kg |
|---|---|
| Dimensions | 157 x 355 x 427 mm (height x width x depth) |
| Line Voltage | 100 — 240 VAC, +/- 10% |
| Power consumption | 140 VA |
| Flash Memory Card capacity | 512 MB storage capacity |
| Platform temperature range | 10 C-35C |
| Voltage Range (Power supplies) | 0.5-10kV |
| Fractionation capacity | 2 x 8 samples (12 or 24 fractions) |
The instrument can operate at altitudes up to 2000 m (6500 ft).
The loading capacity ranges from 50 ug to 5 mg of total protein or peptide amount per sample.
